Description:

1.It supports 4.9G to 6.1G broadband operation, and customers can choose freely.

2.High-efficiency DC/DC power supply supports 7-36V; Wide range of voltage inputs.

3.Push-button/TBS control to quickly change CH and power.

4. Dual-core bi-amp design, mutual backup, better stability.

5.The special design does not connect the antenna and does not burn the power amplifier, so as to prevent

the product from being burned by forgetting to plug in the antenna for a short time.

6. Automotive-grade temperature range RF crystal for more frequency stability.

7. Selected high-strength aluminum alloy CNC shell plus external large-size turbofan, active heat

dissipation, enhanced power, stable transmission.

Product parameters:

1. Input voltage: 7-36V DC (2-6S), large output power, stable output power, long transmission distance;

2. Weight: 26g (without antenna)

3. DIMENSIONS (LWWx): 38*38*18MM

4.Video format: PAL/NTSC

5. Transmit power:35dBm±1dBm(MAX)

6. Number of powers 5 gears:25mW,500,1000mW,1500mW,3000mW；

7. Power adjustment: power adjustment button, short press to switch

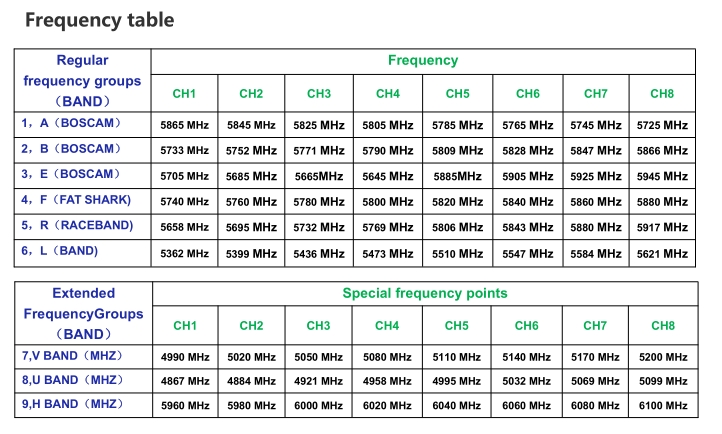

8. Transmission frequency: 48CH+24CH, see the frequency table for details

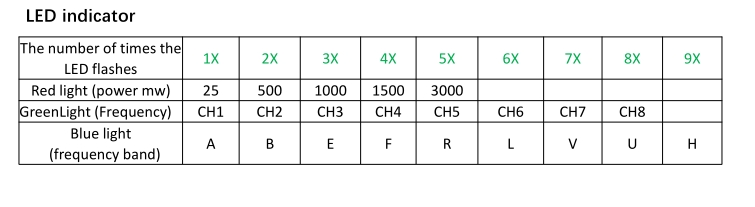

9. Channel selection: frequency band/frequency adjustment button: long press for 3 seconds to switch

frequency band, short press to switch frequency point

10. Antenna interface: MMCX

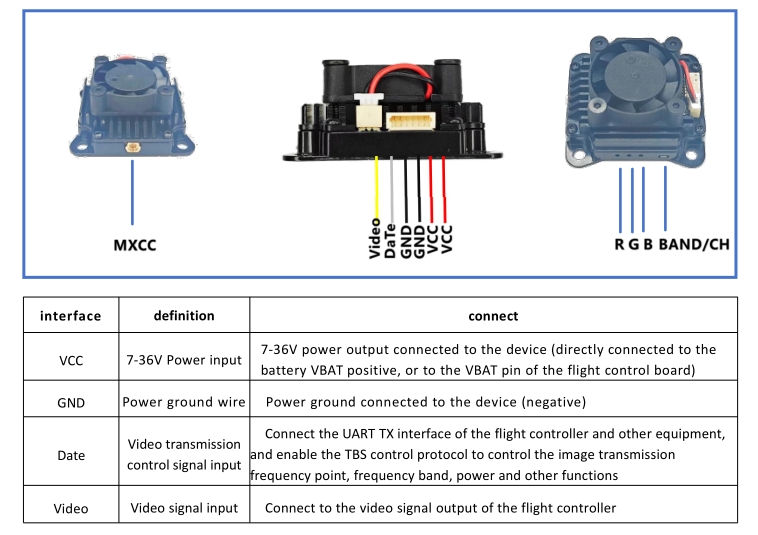

Transmitter wiring diagram:

4.9G Drone VTX

5.8G Drone VTX

6.1G Drone VTX
