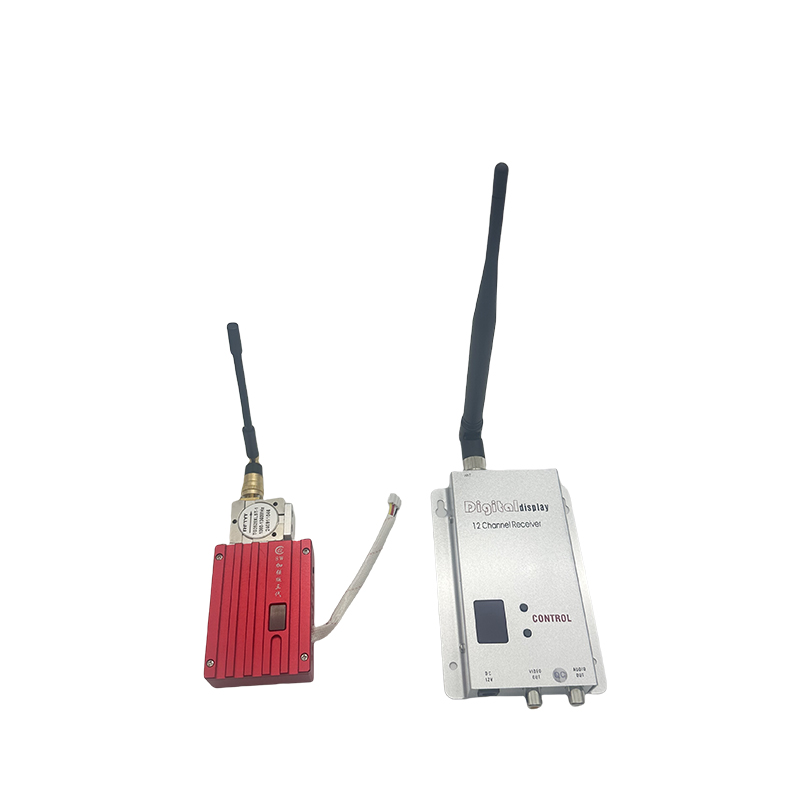

1.2Ghz 8W Digital Transmission Wireless Video Transmitter Receiver 1.2G FPV VTX for Drone

Brand Name : Kimpok

Model Number : KP-12VTX8WR

Certification : CE

Place of Origin : China

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000 piece/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Type : Wireless video transmission

Power : 12V DC

RF power : 8 Watt

Channel : 8 Channels

Contact Now

1.2Ghz 8W Digital Transmission Wireless Video Transmitter Receiver 1.2G FPV VTX for Drone

Description:

The KP-12TX8WR wireless video transmission device is an excellent wireless video transmission device, especially suitable for complex physical environments. It uses an omnidirectional antenna of 0dB (original small antenna), and in FPV systems, the antenna gain has a significant effect on the signal range. Omnidirectional antennas typically have lower gain, while directional antennas have higher gain and are able to focus the signal in one direction to achieve greater distances. As a result, KP-12TX8WR devices can significantly increase transmission distance and coverage when using high-gain directional antennas.

Parameter:

Transmitter parameter:

Voltage DC 12V
Current 700mA
Frequency 1.2Ghz (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240Mhz, 1280MHz; 1320Mhz; 1360Mhz)
Number of channels 8CHs
Transmit Power 8000mW
Video Output 1 Vp-p(FM)
Audio Output 1 Vp-p(FM)
Audio Carrier Ware 5.5M 6.0M
Distance (Open environment) 5~10KM
Overall Configuration Transmitter, AV cable, power supply, antenna
Temperature -10℃ ~ +50℃
Transmitter Weight 200g
Dimensions (L * W * H)

95x50x20mm

Receiver parameter:

Frequency 1.2Ghz
Channel 12 channels
Working voltage DC 12V
Current consumption 260mA
Weight 115g
Size 115*80*21mm
Accessories

receiver, antenna, AV cable
