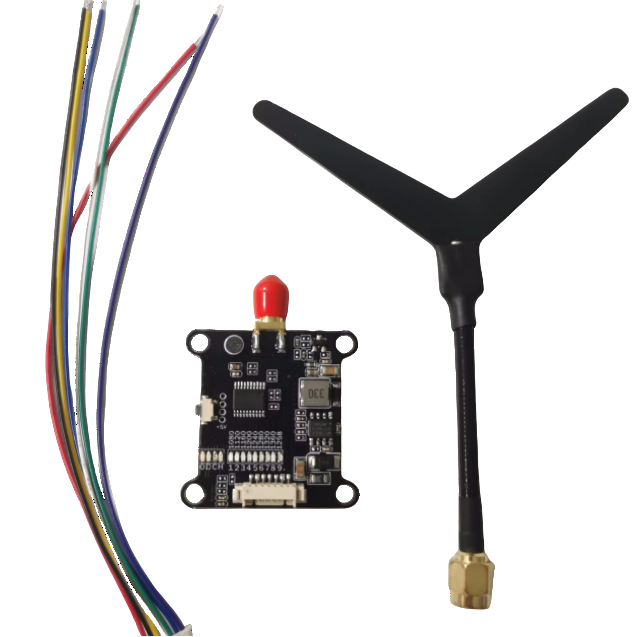

1.2G FPV VTX 1.2Ghz 1.6W Wireless Video Transmitter Module for Drone Digital Transmission

  • 1
  • 2
  • 3

Brand Name : Kimpok

Model Number : KP-12VTX1600M

Certification : CE

Place of Origin : China

MOQ : 1 Piece

Price : Negotiation

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000 piece/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Modulation type : FM

Frequency : 1.2Ghz

RF power : 1.6W

Channel : 8 Channels

Contact Now

1.2G FPV VTX 1.2Ghz 1.6W Wireless Video Transmitter Module for Drone Digital Transmission

Specifications

Item SPEC.
Frequency band 1120-1360Mhz
Channel 8 channels
Channel Frequency 1120/1160/1200/1240/1280/1320/1360/1258(MHz)
RF power 0. 1mW / 25mW / 200mW / 1600mW
Audio Sub-carrier 6.5MHz/6.0MHz
Modulation type FM
Frequency control PLL
Audio sub-carrier control PLL
Frequency Stability ±100KHz (Typ.)
Frequency precision ±200KHz (Typ.)
A/V (Ratio) -26±2dB
S/N(Fo±3MHz) >70d Bc
Channel Carrier error 1dB
Antenna Port 50 Ohms
Input format NTSC or PAL
Video input level 1V±0.2Vp-p type
Audio input level 1V±0.2Vp-p type
Operating Temperature -10℃~+60℃
Input power supply DC 7-36V
Output voltage DC 7-36V ; DC5V
Profile dimension 45.5mm(L)*35.8mm(W)*8.4mm(H)
Installation hole position 30.5mm x 30.5mm
Net weight 10g

Precautions for Use

1. A certain space shall be reserved when the image transmission module is installed to ensure the air convection around the module and module cooling; otherwise, if the overheating protection of the module is started, the power emission will be lowered and even closed.

2. It is suggested to ensure correct voltage scope and correct positive and negative anodes before powering-on to avoid element burning-out.

3. It is suggested to confirm antenna has been installed at the RF output terminal before powering-on to extend the service life of module.

4. Please read the Instruction before use to ensure correct wiring and extend the service life of module.
