Place of Origin : Guangdong, China
Brand Name : Kimpok Technology
Model Number : KP-HDT25W
Packaging Details : International standard packing
Supply Ability : 5000/month
MOQ : 1 Piece
Price : Negotiation
Certification : CE
Payment Terms : T/T, PayPal, Alipay
Delivery Time : 1-3 working days
Private Mold : Yes
Product name : backpack wireless video audio transmitter
Frequency : 300-900MHz option,1.2G/2.4G/5.8GHz
Power supply : DC11-14.5V/1.9A
Modulation : COFDM
RF Bandwidth : 4/8MHz(adjustable)
Delay time : Only 200ms
FEC : 1/2 2/3 3/4 7/8
Guard Interval : 1/32 1/16 1/8 1/4
Data Encryption : AES 128/256 Bits
Max speed : 450km/h
Port : Shenzhen/Hong Kong
5km Tight Backpack COFDM Digital Wireless Video Audio Transmitter with battery
Description:
KP-HDT5000 is a new arrival digital wireless video audio transmitter which adopts the latest technologies of COFDM modulation and H.264/H.265 image compression that enables good NLOS (Non line-of -sight) transmission with DVD quality video. The transmitter is compact size with strong power amplifier for longer-range transmission. Good heat resistant with two cooling fans. Be safety with AES128 bits. It works well in fast-moving transmission.
Microwave RF solutions wireless link video communication transmitter has high efficiency innovative H.264 compression encoding, integrated with lightweight, low power consumption of OLED display control panel, integrating digital modulation, and highly integrated HD moving LOS and NLOS digital video transmission equipment.
Transmitter parameter:
Modulate |
COFDM |
Working voltage |
DC12V |
Working current |
≤6A@DC12V |
RF bandwidth |
2/4/6/8MHz (adjustable) |
Frequency |
300-900Mhz or other frequency customized |
Output power |
1-5W (adjustable) |
Video input |
HDM-I/SDI; CVBS |
Data input (option) |
RS232/TTL, up to 115200bps |
Video resolution |
1920*1080P/I@60fps; 1280*720P/I@60fps |
Video coding |
MPEG-2/H.264/H265 |
Video rate |
512Kbps-16Mbps (adjustable) |
Encryption |
AES 128 bits |
AV input |
1Vp-p, 75Ω. Left and right channel |
Video system |
PAL/NTSC |
Power flatness |
Full band ≤1.5dB |
CNR |
≥25dBc@48dBm |
Second harmonic |
≥60dBc |
CBER |
<2.0E-4 |
VBER |
<1.0E-7 |
MER |
32dB |
Carrier |
2k 4k 8k |
Constellation |
QPSK,16QAM,64QAM (option) |
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 (option) |
Guard Interval |
1/32, 1/16, 1/8, 1/4 (option) |
Working Temperature |
-25°C~55°C |

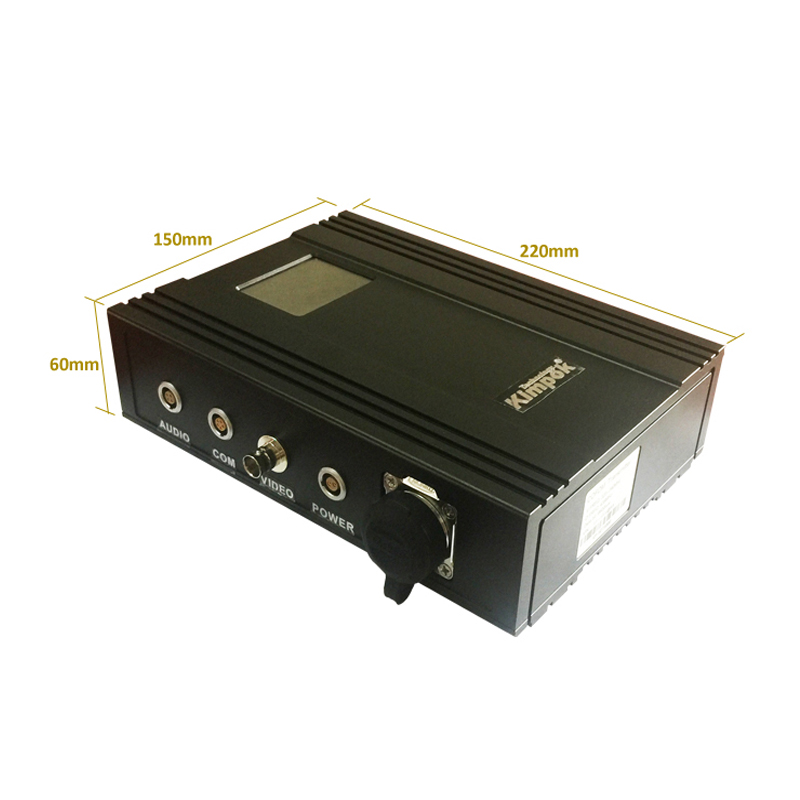

Dimension |
220*150*60mm |
Weight |
1.36kg |
Receiver parameter:
Frequency |
300-900MHz or other frequency customized |
Bandwidth |
2/3/4/5/6/7/8MHz (option) |
RF input level |
-94dBm~0dBm(8M)/-98dBm~0dBm(2M) |
RF input impedance |
50Ω |
RF input type |
N type |
Modulation |
COFDM |
Constellation |
QPSK,16QAM,64QAM(adjustable) |
FEC |
1/2,2/3,3/4,5/6,7/8(adjustable) |
Carrier |
2k |
Guard Interval |
1/32,1/16,1/8,1/4(adjustable) |
Video coding |
MPEG-2/H.265 |
Screen |
4:3 16:9 |
Video resolution |
1080P@4MHz |
Audio output |
Stereo unbalance 300/ 200mv |
AV output |
2 Audio output + 2 Video output. SDI/HDM/ASI |
Working voltage |
AC220V/DC12V <1A |
working temperature |
-20℃~+50℃ |
Dimension |
480*260*45(1U chassis) |
Weight |
1.5kg |
![]() |

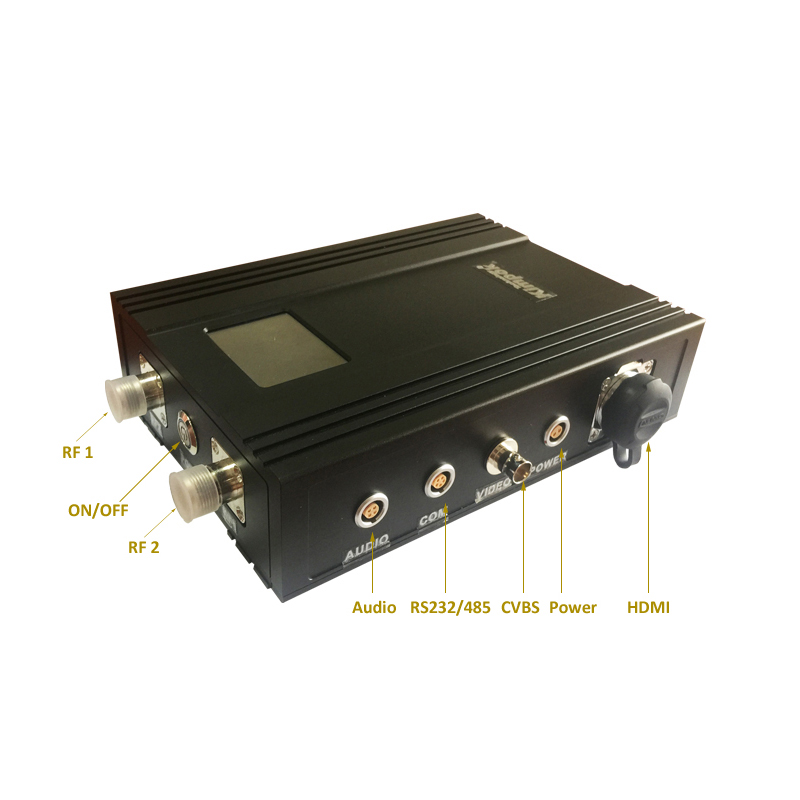

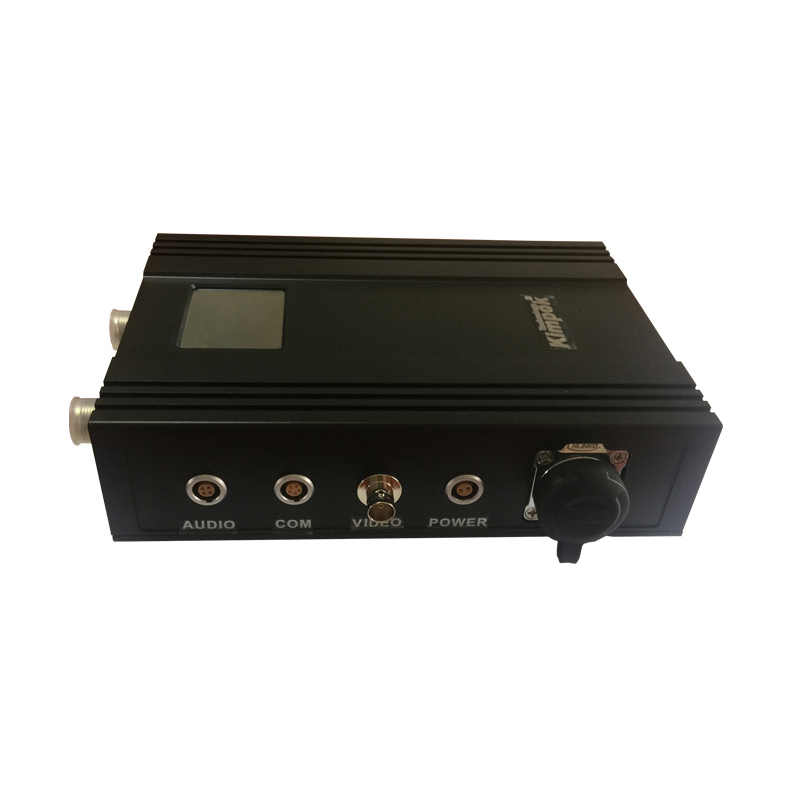

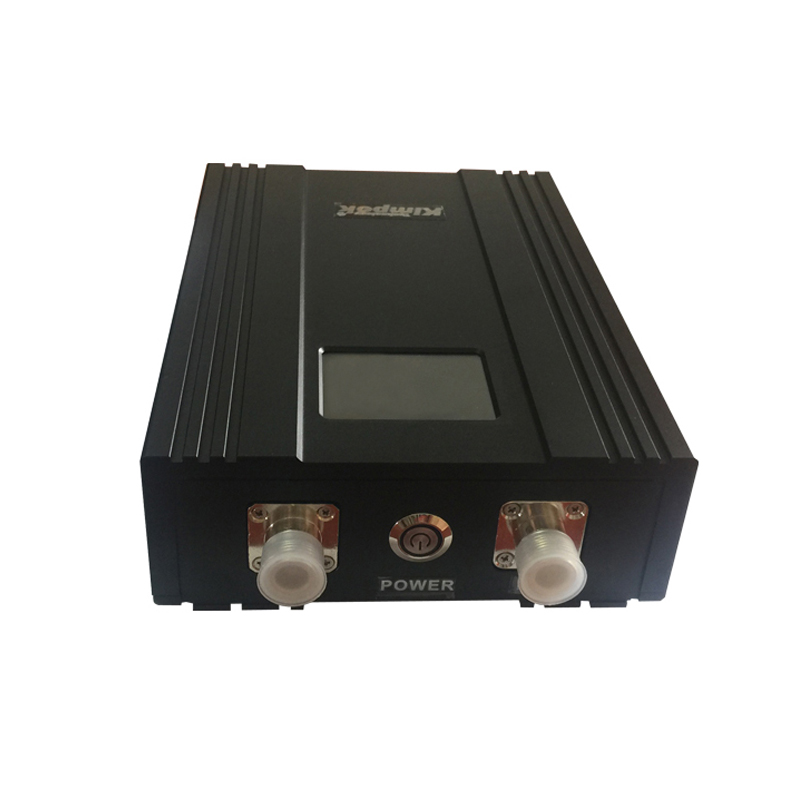

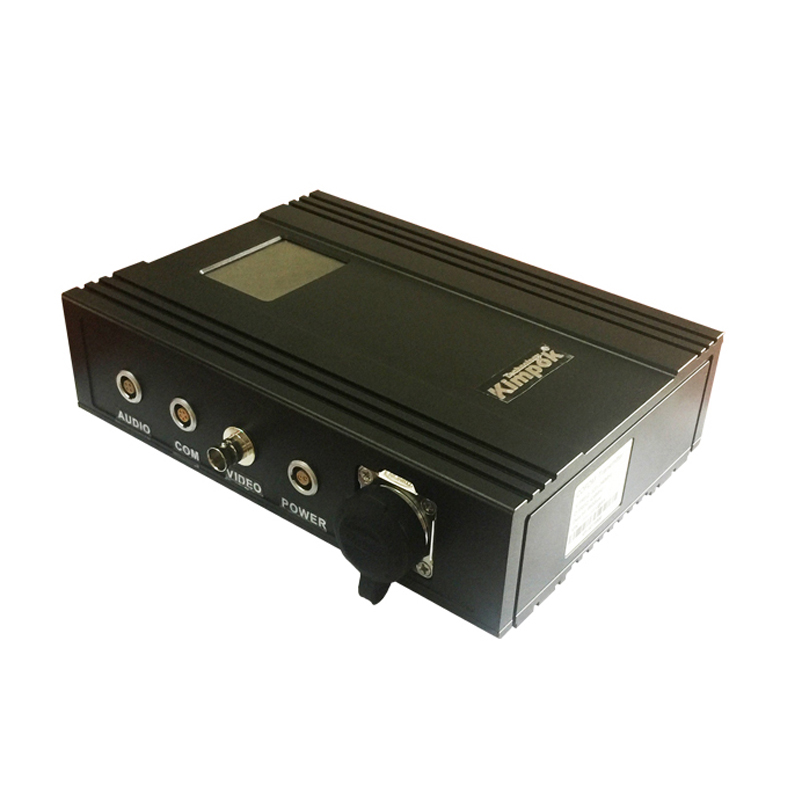

5km Tight Backpack COFDM Digital Wireless Video Audio Transmitter with 1/8 1/4 Guard Interval and Only 200ms Delay Time Images |
