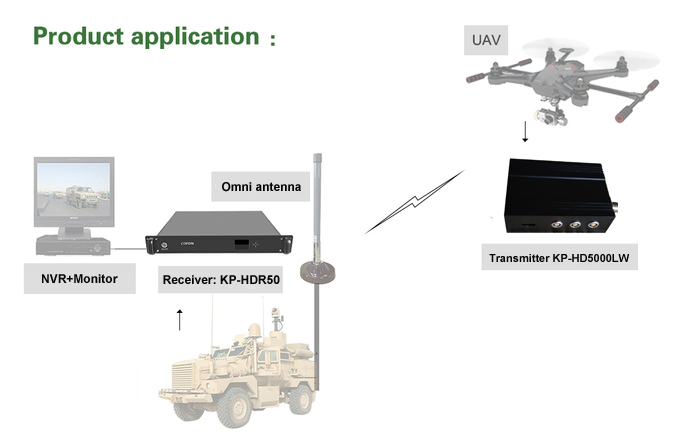

300-4400Mhz Option Frequency UGV Wireless Video Transmission System with HD/CVBS Video Input and H.265 Video Coding

Modulate

COFDM

Working voltage

DC12V

Working current

≤6A@DC12V

RF bandwidth

2/4/6/8MHz (adjustable)

Frequency

300-900Mhz or other frequency customized

Output power

2-5W adjustable

Video input

HDM-I/AHD

Data input (option)

RS232/RS485/TTL, up to 115200bps

Video resolution

1920*1080P/I@60fps; 1280*720P/I@60fps

Video coding

H.264

Video rate

512Kbps-16Mbps (adjustable)

Encryption

AES 128 bits

AV input

1Vp-p, 75Ω. Left and right channel

Video system

PAL/NTSC

Power flatness

Full band ≤1.5dB

CNR

≥25dBc@48dBm

Second harmonic

≥60dBc

CBER

<2.0E-4

VBER

<1.0E-7

MER

32dB

Carrier

2k 4k 8k

Constellation

QPSK,16QAM,64QAM (option)

FEC

1/2, 2/3, 3/4, 5/6, 7/8 (option)

Guard Interval

1/32, 1/16, 1/8, 1/4 (option)

Working Temperature

-25°C~55°C

Dimension

130*100*43mm

Weight

600g

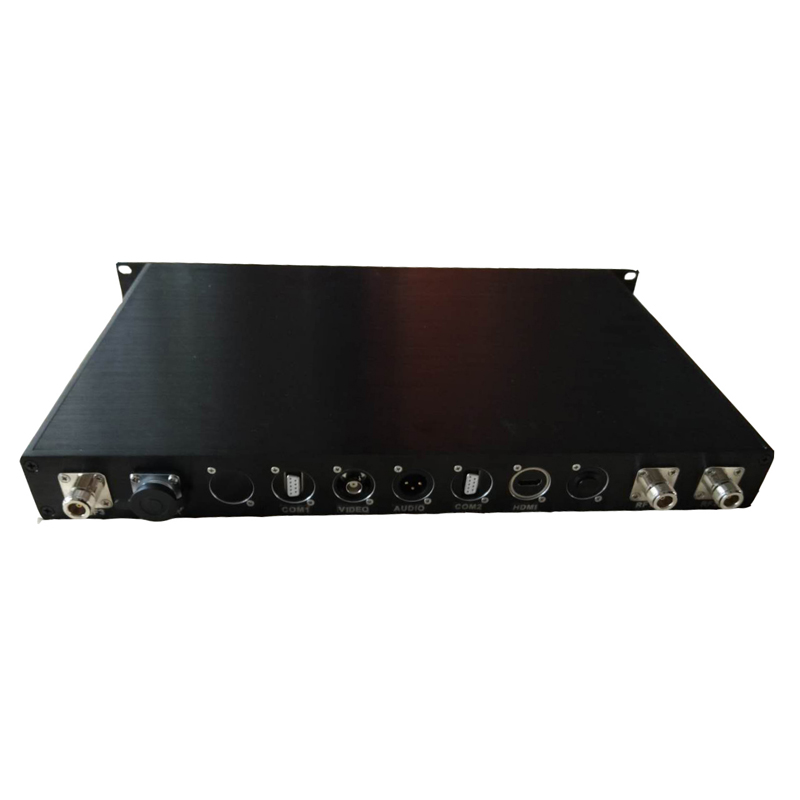

Frequency

300-900Mhz (option)

Bandwidth

2/3/4/5/6/7/8MHz (option)

RF input level

-94dBm~0dBm(8M)/-98dBm~0dBm(2M)

RF input impedance

50Ω

RF input type

N type

Modulation

COFDM

Constellation

QPSK,16QAM,64QAM(adjustable)

FEC

1/2,2/3,3/4,5/6,7/8(adjustable)

Carrier

2k

Guard Interval

1/32,1/16,1/8,1/4(adjustable)

Video coding

H.264

Screen

4:3 16:9

Video resolution

1920*1080P/I@4Mhz

Audio output

Stereo unbalance 300/ 200mv

AV output

2 Audio output + 2 Video output; HDMI

Working voltage

AC220V/DC12V <1A

working temperature

-20℃~+50℃

Dimension

440*340*65mm(1U chassis)

Weight

1.5kg
