Long Range Wireless Video Audio Transmission and QPSK Constellation 100 Watt COFDM Transmitter for Vehicle/Maritime

Name: Long Range Wireless Video Audio Transmission and QPSK Constellation 100 Watt COFDM Transmitter for VehicleMaritime
Brand: Kimpok
Price: 1 USD

Long Range Wireless Video Audio Transmission and QPSK Constellation 100 Watt COFDM Transmitter for Vehicle/Maritime Manufactures

Place of Origin : Guangdong, China

Brand Name : Kimpok

Model Number : KP-CM100H

Price : Negotiation

Certification : CE

MOQ : 1 Piece

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000/month

Delivery Time : 1-3 working days

Packaging Details : International standard packing

Product name : long range wireless transmitter and receiver

Frequency/AV : 300-900Mhz option or 1.2Ghz; 2.4Ghz; 5.8Ghz

Frequency/DATA : 433Mhz or other

Modulation : COFDM 2K QPSK

RF power output : 100 watt

Voltage : DC11-14.5V / DC 28V

Current : 4.7A

Video rate : 15Mbps(MAX)

Constellation : QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz

FEC : 1/2,2/3,3/4,5/6, 7/8 (optional)

Contact Now

Product Description

KP-CM100H is big RF power device special design for vehicle NLOS mobile digital image transmission. Using standard 19 inch 2U dimension appearance that very conveniently for car, boat fixed installation. Support one channel image and two audio channels. Its large rf power that depends on its long range distance transmission. Suitable for Car to car, boat to boat, vehicle to fixed station, boat to fixed station, helicopter to fixed station Which can be also as a repeater, can up to 200km LOS from air and 50km NLOS distance if work with omni-directional antenna.

Features:

♦COFDM modulation, Stable transmission
♦H.264 video compression, DVD video quality
♦Military aluminum housing ,Strong casing with built-in two cooling fans
♦Mobile and NLOS(Non line-of-sight) transmission
♦Great security by encryption of AES 128 bits
♦Low system latency
♦Modular design, compact structure, OEM design
♦Several wavebands available: VHF/L/ S
♦ Support two-way voice communication (option).

Transmitter parameter:

Frequency/AV	300-900Mhz option or 1.2Ghz; 2.4Ghz; 5.8Ghz
Frequency/DATA	433Mhz or other
Modulation	COFDM 2K QPSK
RF power output	100 watt (adjustable)
Voltage	DC11-14.5V
Current	4.7A
Video rate	15Mbps(MAX)
Constellation	QPSK,16QAM,64QAM(optional), QPSK/16QAM/64QAM @ 6/7/8MHz
FEC	1/2,2/3,3/4,5/6, 7/8 (optional)
Guard Interval	1/32,1/16,1/8,1/4 (optional)
Bandwidth	2/2.5/4/8M(adjustable)
Video Interface	HDM-I;SDI; CVBS
Encryption	AES 128 bit / ALLTECH Basic scrambling
Flatness	Full band≤2dB ,8MHz≤0.5dB
Carrier	2K,8K
SHG	>52dBc
Video Signal	1Vp-p@75Ω,NTSC/PAL adaptive
CBER	<2.0E-4
Video Compression	H.265/H.264
Resolution	1280720P / 19801080P
Video Input	1Vp-p@75Ω,NTSC/PAL (autoadaptation)
RF Interface	N(type)
Video decoding	ISO/IEC13818-2 MPEG-2MP@ML
OperatingTemperature	-25℃~55℃
Storage Temperature	-40℃~70℃
Size	480400132mm
Weight	14.5kg

Long Range Wireless Video Audio Transmission and QPSK Constellation 100 Watt COFDM Transmitter for Vehicle/Maritime

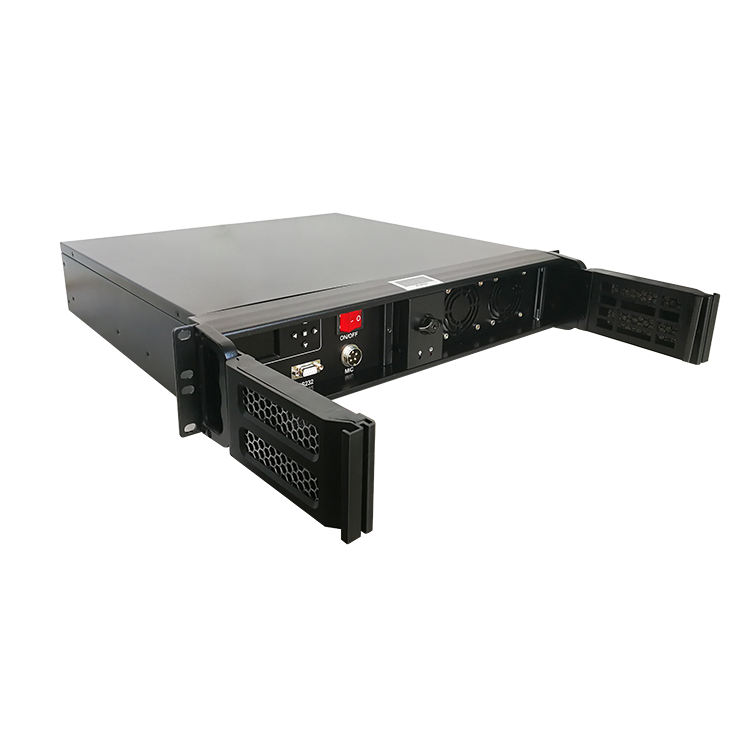

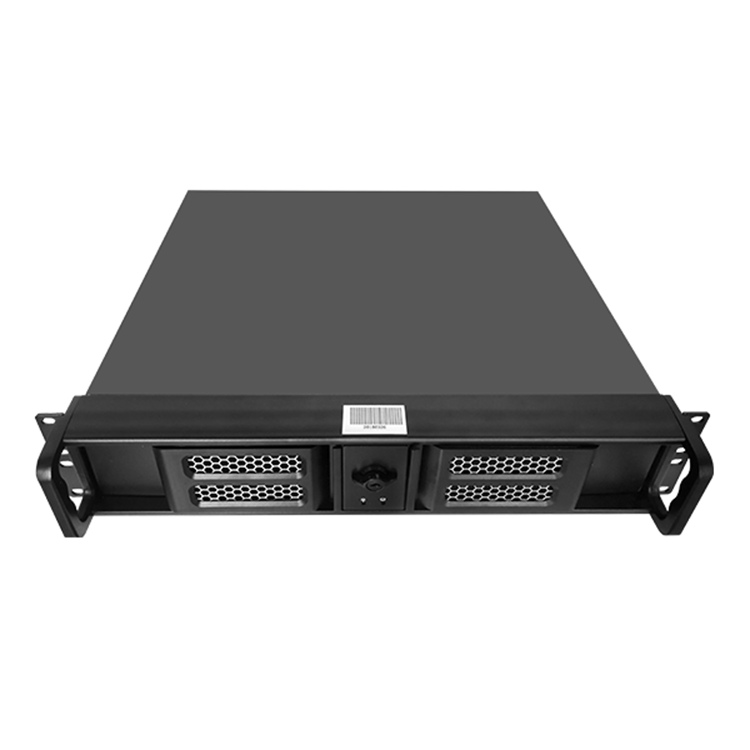

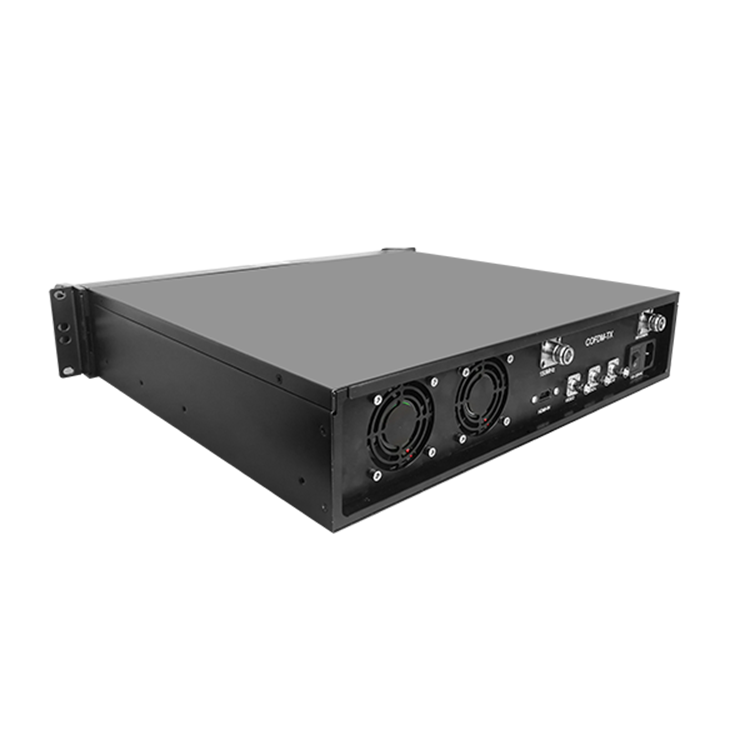

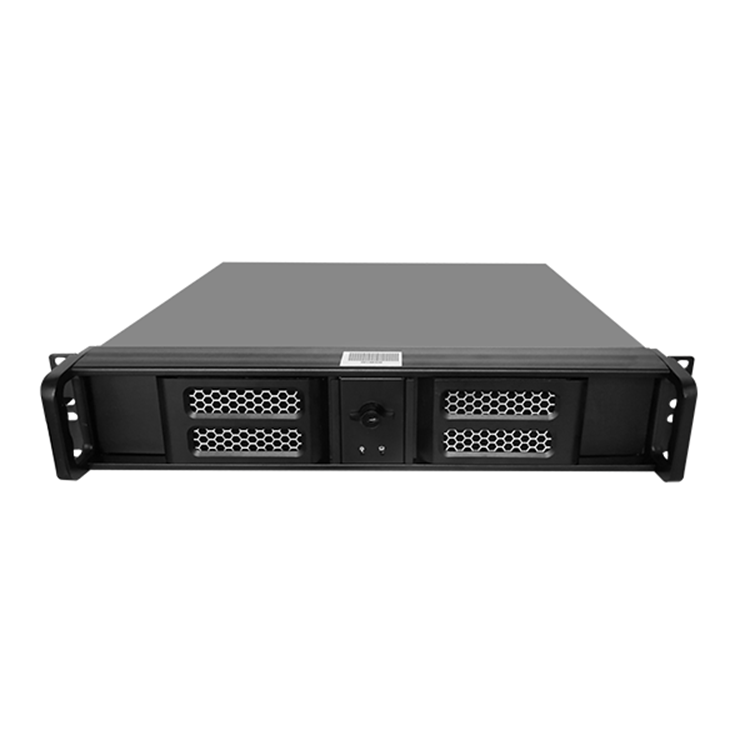

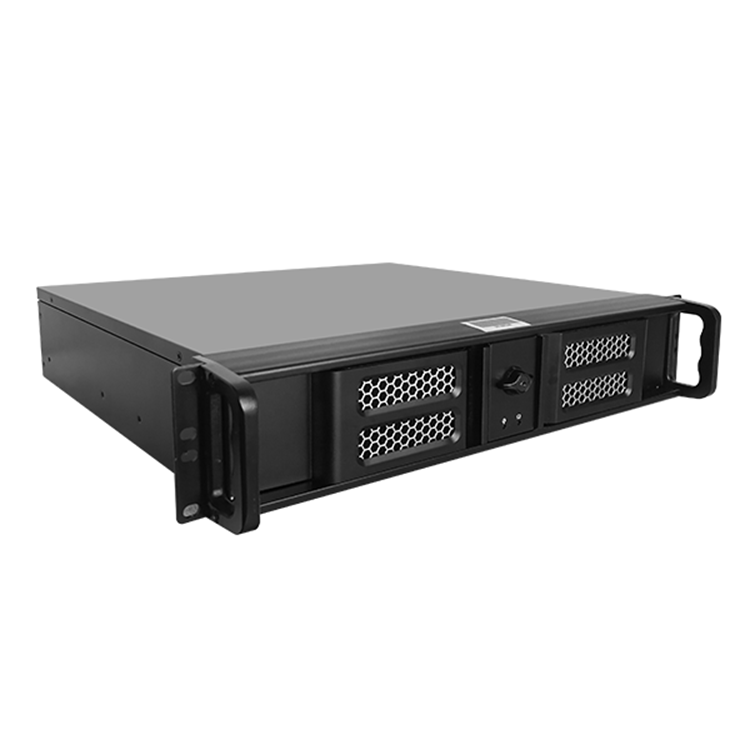

Long Range Wireless Video Audio Transmission and QPSK Constellation 100 Watt COFDM Transmitter for Vehicle/Maritime Images
