Outdoor 5dBi Gain 868MHz Fiberglass Material Omni Wireless RF Antenna for Digital TV Transmission and Reception

Name: Outdoor 5dBi Gain 868MHz Fiberglass Material Omni Wireless RF Antenna for Digital TV Transmission and Reception
Brand: Kimpok Technology
Price: 1 USD

Place of Origin : Guangdong, China

Brand Name : Kimpok Technology

Model Number : KP-OM800B12

Packaging Details : International standard packing

Price : Negotiation

Certification : CE

MOQ : 1 Piece

Payment Terms : T/T, PayPal, Alipay

Supply Ability : 5000/month

Delivery Time : 1-3 working days

Type : Outdoor

Frequency Range : 1120-1200Mhz

Gain : 5dBi

Frequency : 1120-1200Mhz

Connector : N type

Polarization : Vertical Degrees

Maximum power : 100W

Length : 0.6m

Contact Now

868MHz 12dbi Wireless RF Antenna Lora Fiberglass Omni RFID Whip Antenna

Description:

The KP-OM800B12 is a high performance omnidirectional antenna designed for the 800 MHz / 900 MHz ISM band. It is ideally suited for multipoint, Non Line of Sight (NLOS) and mobile applications where high gain and wide coverage is desired. Typical applications include 900 MHz Wireless LAN, SCADA, Wireless Video Links, LPWAN/IoT/M2M, and 800 MHz as well as 900 MHz Cellular band applications.

This antenna features an integral N-Female bulkhead type connector that mounts through the wall of an equipment enclosure.

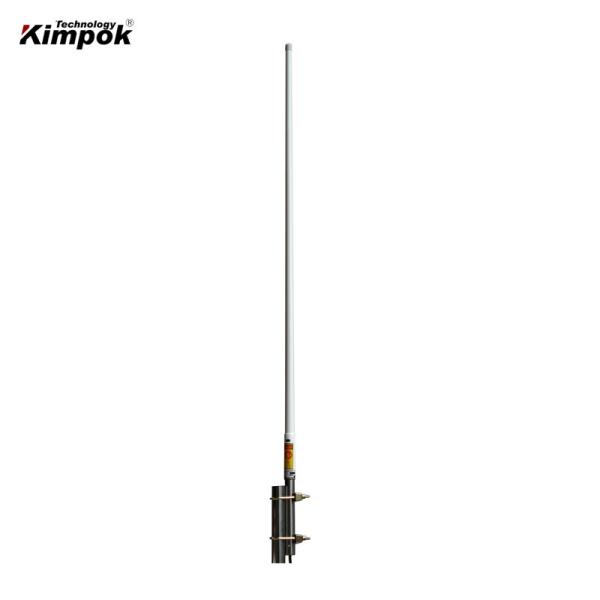

This omni antenna’s construction features a rugged 1.3" diameter white high intensity fiberglass radome for durability and aesthetics. It is designed for all weather operation.

Features:

Integral N-Female connector
Lightweight fiberglass radome
Superior all weather performance

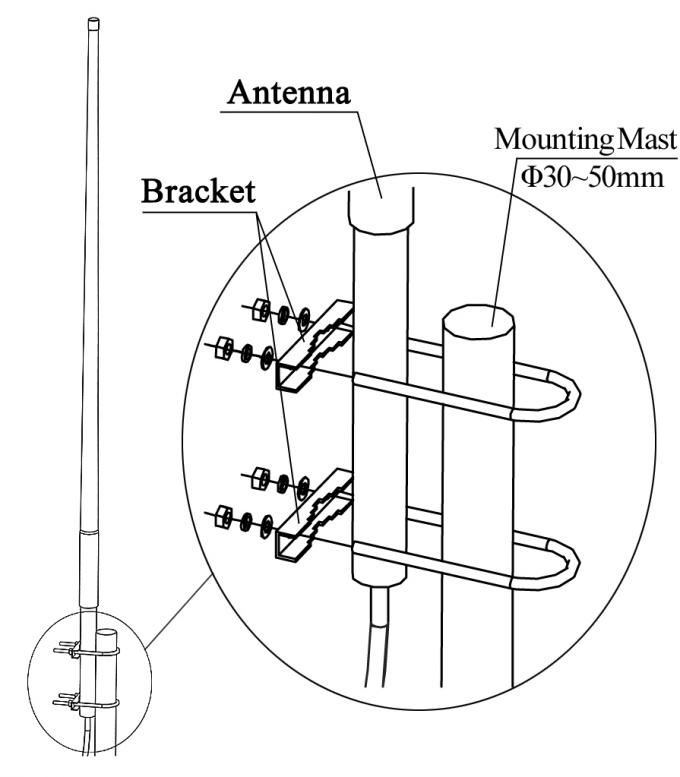

Heavy-duty steel mounting bracket
Rugged industrial grade design

Application:

900 MHz ISM Band & Wireless LAN systems
Non Line of Sight (NLOS)
GSM
LPWAN, LoRA, IoT, M2M applications
Multipoint applications

Specification:

Category	Fiberglass Antennas
Frequency Range-MHz	806~960
Bandwidth-MHz	72
Gain-dBi	12
Vertical Beamwidth-°	7
VSWR	≤1.5
Nominal Impedance-Ω	50
Polarization	vertical
Maximum Power-W	100
Dimcnsions-m	2.6
Weight-kg	2.5
Rated Wind Velocity-m/s	60
Connector	N Female or customization
Mounting Mast Diameter-mm	Ø35~50
